Product Summary

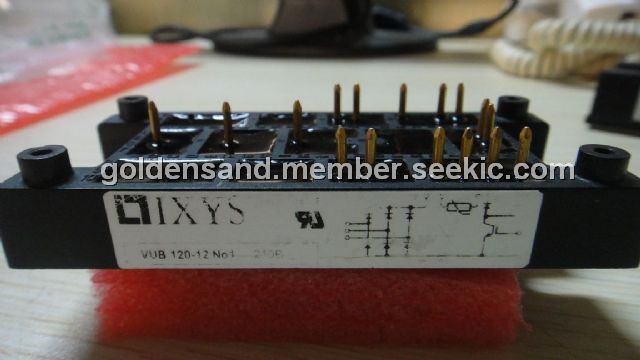

The VUB120-12N01 is a Three Phase Rectifier Bridge with IGBT and Fast Recovery Diode for Braking System. Applications of the VUB120-12N01 are drive inverters with brake system.

Parametrics

VUB120-12N01 absolute maximum ratings: (1)VRRM: 1200 V; (2)IFAV: 25 A; (3)IFRMS: 39 A; (4)IFRM: tbd A; (5)IFSM: 200 A; (6)Ptot: 100 W; (7)TVJ: -40 to +150 ℃; (8)TVJM: 150 ℃; (9)Tstg: -40 to +125 ℃.

Features

VUB120-12N01 features: (1)Soldering connections for PCB mounting; (2)Isolation voltage 3600 V; (3)Ultrafast diode; (4)Convenient package outline; (5)UL registered E 72873; (6)Case and potting UL94 V-0; (7)Thermistor.

Diagrams

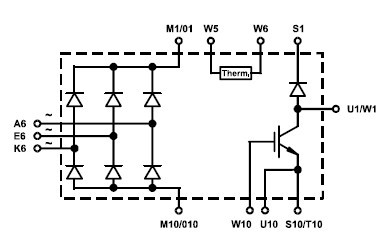

VUB120-12N01 diagram
