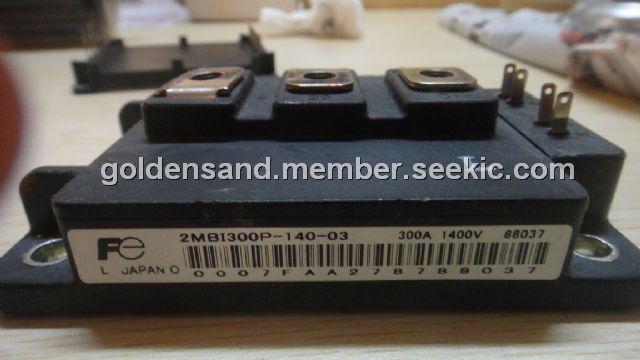

Product Summary

The 2MBI300P-140 is an IGBT module. The applications of the device include High Power Switching, AC and DC Servo drive amplifier, Uninterruptible power supply.

Parametrics

2MBI300P-140 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1400 V; (2)Gate -Emitter Voltage VGES: ± 20 V; (3)Continuous TC=25℃: 400A; (4)Continuous TC=80℃: 300A; (5)Collector 1ms TC=25℃: 800A; (6)Current 1ms TC=80℃: 600; IC: 300A; 1ms -IC PULSE: 600A; (7)Max. Power Dissipation PC: 2500 W; (8)Operating Temperature Tj: +150 ℃; (9)Storage Temperature Tstg: -40 ~ +125 ℃; (10)Isolation Voltage A.C. 1min. Vis: 2500 V.

Features

2MBI300P-140 features: (1)Square SC SOA at 10 x IC; (2)Simplified Parallel Connection; (3)Narrow Distribution of Characteristics; (4)High Short Circuit Withstand-Capability.

Diagrams

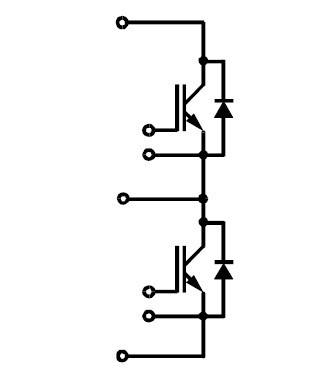

2MBI300P-140-03 circuit
