Product Summary

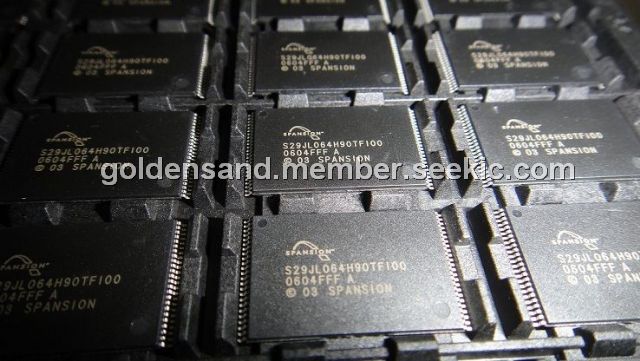

The S29JL064H90TFI00 is a 64 megabit, 3.0 volt-only flash memory device, organized as 4,194,304 words of 16 bits each or 8,388,608 bytes of 8 bits each. Word mode data appears on DQ15–DQ0; byte mode data appears on DQ7–DQ0. The S29JL064H90TFI00 is designed to be programmed in-system with the standard 3.0 volt VCC supply, and can also be programmed in standard EPROM programmers. The S29JL064H90TFI00 is available with an access time of 55, 60, 70, or 90 ns and is offered in 48-pin TSOP and 63-ball Fine Pitch BGA packages. Standard control pins-chip enable (CE#), write enable (WE#), and output enable (OE#)—control normal read and write operations, and avoid bus contention issues. The S29JL064H90TFI00 requires only a single 3.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations.
Parametrics
S29JL064H90TFI00 absolute maximum ratings: (1)Storage Temperature:–65 to +150℃; (2)Ambient Temperature with Power Applied: –65 to +125℃; (3)Voltage with Respect to Ground, VCC: –0.5 V to +4.0 V; A9, OE#, and RESET#: –0.5 V to +12.5 V; WP#/ACC: –0.5 V to +10.5 V; All other pins: –0.5 V to VCC +0.5 V; (4)Output Short Circuit Current: 200 mA.
Features
S29JL064H90TFI00 features: (1)Simultaneous Read/Write operations; (2)Flexible Bank architecture; (3)Boot Sectors; (4)Manufactured on 0.13 μm process technology; (5)SecSi (Secured Silicon) Sector: Extra 256 Byte sector; (6)Zero Power Operation; (7)Compatible with JEDEC standards; (8)Ultra low power consumption (typical values); (9)Cycling Endurance: 1 million cycles per sector typical; (10)ata Retention: 20 years typical.
