Product Summary

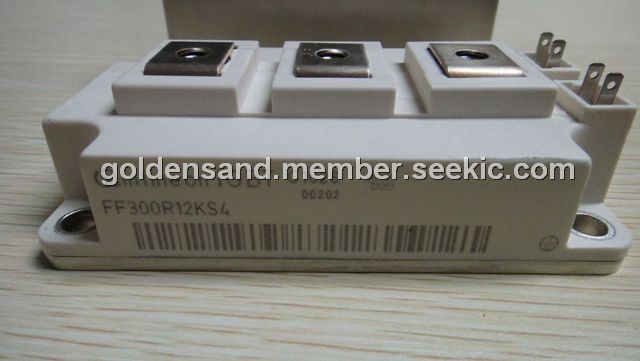

The FF300R12KS4 is a 62mm C-series module with the fast IGBT2 for high-frequency switching.

Parametrics

Absolute maximum ratings: (1)collector-emitter voltage: 1200 V at Tvj=25℃; (2)DC-collector current: 300 A at TC=60℃, Tvj=150℃, 370 A at TC=25℃, Tvj=150℃; (3)repectitive peak collector current: 600 A at tP=1 ms; (4)total power dissipation: 1950 W at TC=25℃, Tvj=150℃; (5)gate-emitter peak voltage: +/-20 V.

Features

Features: (1)collector-emitter saturation voltage: 3.20 V typ and 3.75 V max at IC=300 A, VGE=15 V, Tvj=25 ℃, 3.85 V typ at IC=300 A, VGE=15 V, Tvj=125 ℃; (2)gate threshold voltage: 4.5 V min, 5.5 V typ and 6.5 V max at IC=12.0mA, VCE=VGE, Tvj=25 ℃; (3)gate charge: 3.20 μC at VGE= -15 V to +15 V; (4)internal gate resistor: 1.0 Ω at Tvj=25 ℃.

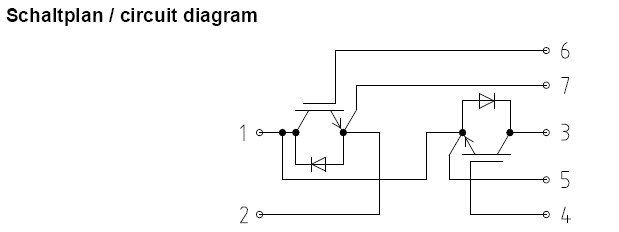

Diagrams
