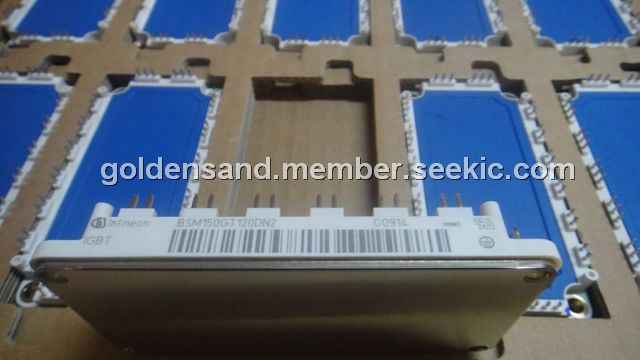

Product Summary

The BSM150GT120DN2 is a IGBT power module.

Parametrics

BSM150GT120DN2 absolute maximum ratings: (1)collector-emitter voltage:1200V; (2)collector-gate voltage RGE=20kΩ:1200V; (3)DC collector current: TC=25℃:200A, TC=80℃:150A; (4)pulsed collector current,tp=1ms:TC=25℃:400A, TC=80℃:300A; (5)power dissipation per IGBT TC=25℃:1250W; (6)chip temperature:+150℃; (7)storage temperature:-55℃ to +150℃.

Features

BSM150GT120DN2 features: (1)Solderable Power module; (2)3-phase full-bridge; (3)Including fast free-wheel diodes; (4)Package with insulated metal base plate.

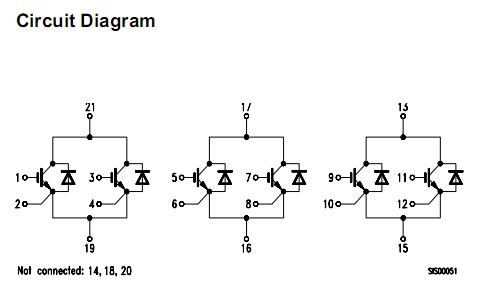

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BSM150GT120DN2
BSM150GT120DN2
Infineon Technologies
IGBT Modules 1200V 150A TRIPACK
Data Sheet
