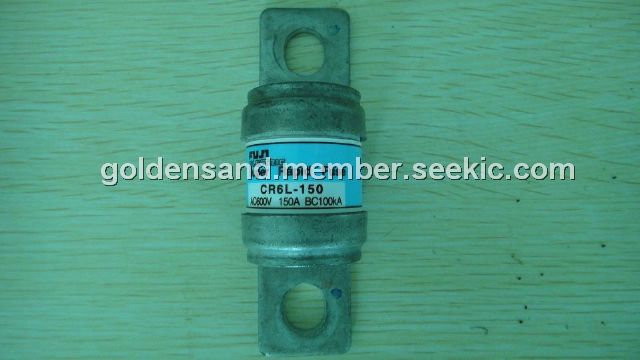

Product Summary

The cr6l-150 is a Low Voltage Fuse which has been specifically developed to provide protection for silicon diodes and thyristors The cr6l-150 is suitable for inverters using semiconductors or transformers-rectifiers.

Parametrics

cr6l-150 general specifications: (1)rated current:150A; (2)rated voltage:600V AC; (3)peak arc voltage:max.1200V; (4)max. interruptiong I2t:18A2*sec; (5)watt loss:22.0W.

Features

cr6l-150 features: (1)the total clearing I2t is small and the semiconductor circuit is completely protected; (2)since the peak are voltage at the time of interruption is low damage to equipment does not occur; (3)high interrupting capacity of 200ka at 100Vac.

Diagrams

cr6l-150 package dimesions
