Product Summary

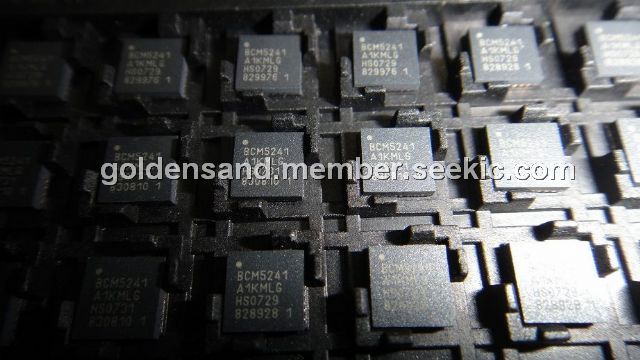

The BCM5241A1KMLG is a single-channel transceiver. DSP techniques allow the BCM5241A1KMLG to achieve high interoperability and to exhibit robust performance across voltage, temperature, and process variations. The applications of the BCM5241A1KMLG include Printers, multi-function peripherals, LAN on motherboard Game consoles, IP Phones, DTVs and Wireless access points.
Parametrics
BCM5241A1KMLG specifications: (1)Product Category: Drivers; (2)Number of Digits: 20; (3)Number of Segments: 160; (4)Package / Case: VSO-56; (5)Maximum Clock Frequency: 400 KHz; (6)Operating Supply Voltage: 8.50V; (7)Maximum Supply Current: 0.12mA; (8)Maximum Power Dissipation: 400mW; (9)Maximum Operating Temperature: + 180℃; (10)Minimum Operating Temperature: - 80℃.
Features
BCM5241A1KMLG features: (1)10BASE-T/100BASE-TX/100BASE-EFX IEEE 802.3u fast Ethernet transceiver; (2)HP auto-MDIX; (3)Advanced cable diagnostics (CableChecker); (4)Robust CESD tolerance; (5)Operation from a single 3.3V or 2.5V supply source; (6)Unique energy detect circuit; (7)Low-power mode; (8)Super isolate mode; (9)Cable length up to 160 meters; (10)MII and 7-wire serial interface; (11)Power dissipation: <170 mW.

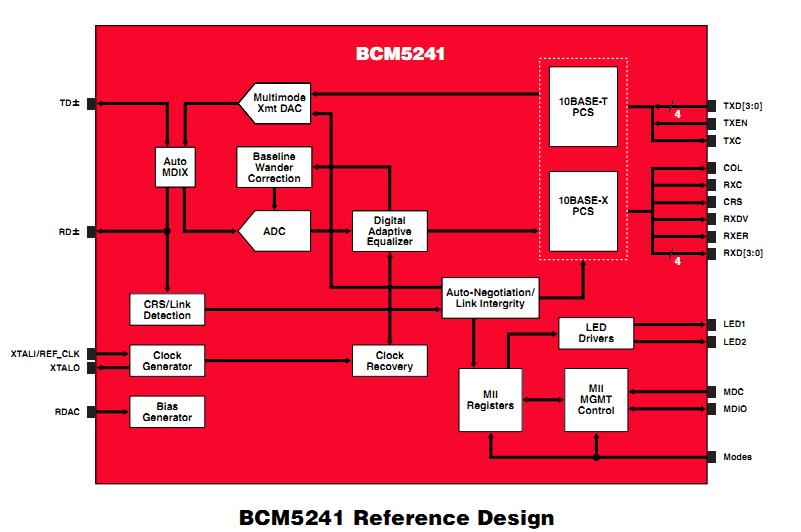

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BCM5241A1KMLG |
Other |
|
Data Sheet |
Negotiable |
|
||||
