Product Summary

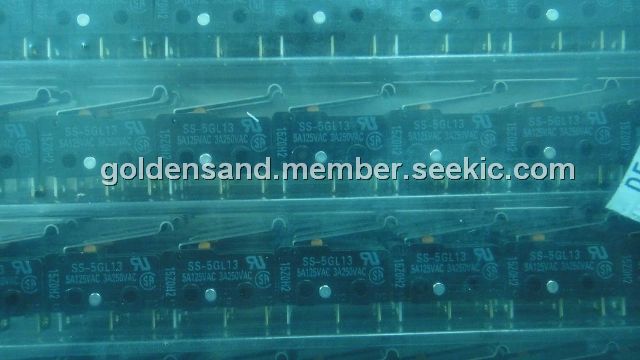

The SS-5GL13 is a Subminiature Snap Action Switch.

Parametrics

SS-5GL13 general specifications: (1)ratings: 5A at 125VAC; (2)actuator:simulated roller lever; (3)maximum operating force:150gf; (4)contact form:SPDT; (5)terminals:solder terminals; (6)insulation resistance:100mΩ at 500VDC.

Features

SS-5GL13 features: (1)Economical, subminiature snap action switch offers long service life (30 million operations minimum); (2)All models are free from overtravel restrictions, permit easy setting; (3)Wide switching capacity range from microvoltage/current loads (1 mA at 5 VDC to high-capacity loads 10.1 A at 250 VAC); (4)Standard operating force, low force or super-low force models available; (5)RoHS Compliant.

Diagrams

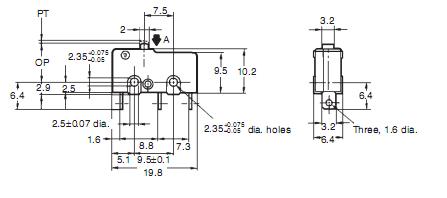

SS-5GL13 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SS-5GL13
SS-5GL13

Omron Electronics

Basic / Snap Action / Limit Switches SIM RLLR HNG LVR SLD

Data Sheet

0-1: $0.96
1-25: $0.91
25-50: $0.85
50-100: $0.77
SS-5GL13-12
SS-5GL13-12

Omron Electronics

Basic / Snap Action / Limit Switches Subminiature Basic Switch

Data Sheet

0-350: $1.03
350-500: $0.95
SS-5GL13-3
SS-5GL13-3

Omron Electronics

Basic / Snap Action / Limit Switches Subminiature Basic Switch

Data Sheet

0-1: $1.30
1-25: $1.18
25-50: $1.09
50-100: $1.01
SS-5GL13-2
SS-5GL13-2

Omron Electronics

Basic / Snap Action / Limit Switches Subminiature Basic Switch

Data Sheet

0-1: $1.24
1-25: $1.13
25-50: $1.03
50-100: $0.95
SS-5GL1363-F
SS-5GL1363-F

Omron Electronics

Basic / Snap Action / Limit Switches Subminiature Basic Switch

Data Sheet

0-360: $1.17
360-500: $1.10
SS-5GL1318
SS-5GL1318

Omron Electronics

Basic / Snap Action / Limit Switches MINIATURE BASIC SWCH

Data Sheet

0-350: $1.33
350-500: $1.24
SS-5GL1373
SS-5GL1373

Omron Electronics

Basic / Snap Action / Limit Switches Subminiature Basic Switch

Data Sheet

0-1: $1.07
1-25: $0.98
25-50: $0.89
50-100: $0.83
SS-5GL1375T
SS-5GL1375T

Omron Electronics

Basic / Snap Action / Limit Switches Subminiature Basic Switch

Data Sheet

0-360: $0.93
360-500: $0.87
