Product Summary

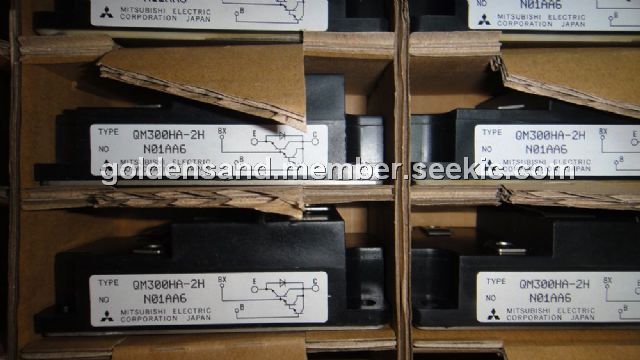

The QM300HA-2H is a MITSUBISHI transistor module which is designed for high power switching use.
Parametrics
QM300HA-2H absolute maximum ratings: (1)Collector-emitter voltage: 1000 V; (2)Collector-emitter voltage: 1000 V ; (3)Collector-base voltage: 1000 V; (4)Emitter-base voltage: 7 V; (5)Collector current: 300 A; (6)Collector reverse current: 300 A; (7)Collector dissipation: 1980 W; (8)Base current: 16 A; (9)Surge collector reverse current (forward diode current): 3000 A; (10)Junction temperature: -40 to +150 ℃; (11)Storage temperature: -40 to +125 ℃.
Features
QM300HA-2H features: (1)IC Collector current: 300A; (2)VCEX Collector-emitter voltage: 1000V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL Recognized Yellow Card No. E80276 (N), File No. E80271.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM300HA-2H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
QM300HA-2HB |
Other |
|
Data Sheet |
Negotiable |
|
||||
