Product Summary

The NJU6535F is a 1/3 or 1/4 duty LCD driver for segment type LCD panel with key scan function transmitting the 30 keys maximum scanned data (6 x 5 = 30) to CPU. The NJU6535F chooses numbers of common, key scan, and general purpose ports by instructions. Therefore, the NJU6535F drives 126 segments at 1/3 duty in use of 3 commons and 42 segments or 164 segments at 1/4 duty in use of 4 and 41. Also it provides 4 general purpose output ports maximum to drive LEDs or others directly. Furthermore, the NJU6535F can select a LCD driving voltage out of 8 steps voltage by the instruction to adjust the display contrast of LCD panel.

Parametrics

NJU6535F absolute maximum ratings: (1)Supply Voltage, VDDmax: -0.3 to +6.0 V; (2)Input Voltage, VI: -0.3 to VDD+0.3 V; (3)Output Voltage, VO: -0.3 to VDD+0.3 V; (4)Power Dissipation, Pdmax: 300 mW; (5)Storage Temperature, Tstg: -55 to +125℃; (6)Operating temperature, Topr: -40 to +85℃.

Features

NJU6535F features: (1)42-segment Drivers; (2)Programmable Duty Ratio: 1/3 Duty: 126-segment (Maximum); 1/4 Duty: 164-segment (Maximum); (3)30-key Scan Function (6X5 matrix) Needless for anti-reverse current diodes in key scan; (4)Programmable Bias Ratio 1/2, 1/3 bias; (5)Output Port for LED (maximum 4 LED); (6)Serial Interface (SI, SO, SCL, CS); (7)Useful Instruction set; (8)Incorporated LCD Driving Voltage Generator Circuits; (9)Electrical Variable Resistance (8-step); (10)Logic Operating Voltage 4.5 ~ 5.5V; (11)LCD Driving Voltage ~5.5V; (12)Package Outline QFP64-G1 QFP64-H1; (13)C-MOS Technology (Substrate :P).

Diagrams

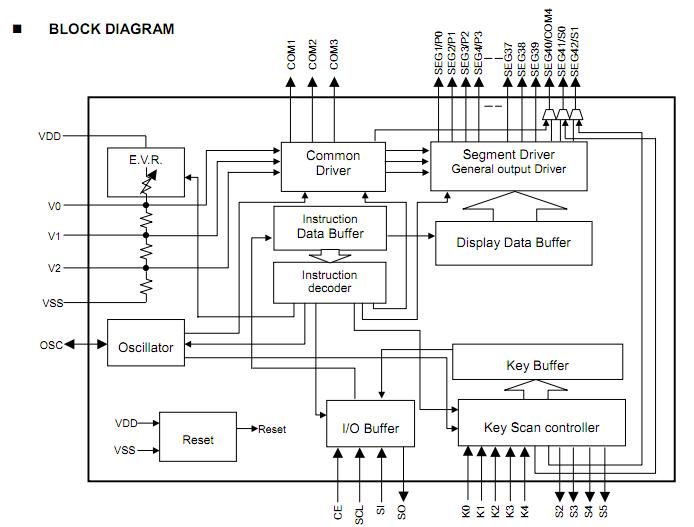

NJU6535F block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NJU6535FG1
NJU6535FG1

NJR

LCD Drivers 1/3, 1/4 Duty LCD Driver

Data Sheet

0-500: $2.77
500-1000: $2.60
1000-2000: $2.41
NJU6535FH1
NJU6535FH1

NJR

LCD Drivers 1/3 1/4 LCD

Data Sheet

0-900: $3.10
900-1080: $2.77
1080-2070: $2.60
