Product Summary

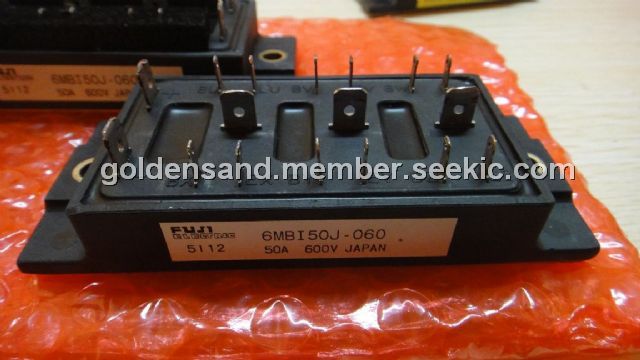

The 6MBI50J-060 is an IGBT module. It is designed for inverter for motor drive, AC and DC servo drive amplifier, uninerruptible power supply, industrial machines, such as welding machines.

Parametrics

6MBI50J-060 absolute maximum ratings: (1)collecter-emitter voltage: 600 V; (2)gate-emitter voltage: 20 V; (3)collector current: 75 A; (4)max. power dissipation: 245 W; (5)operating temperature: +150 ℃; (6)storage temperature: -40 to +125 ℃; (7)isolation voltage: 2500 V.

Features

6MBI50J-060 features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.

Diagrams

6MBI50J-060 circuit
