MC68HC711E9CFN2

8 bit microcontroller unit, 12K, 2MHZ, 52-PLCC, 3.0–5.5 Vdc, MC68HC711E9CFN2

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: MC68HC711E9CFN2

Brand:: Motorola, Inc - Motorola | Pack: PLCC | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. sam's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-08

From Other Seller

Part Number:MC68HC711E9CFN2
US $1.00 - 2.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

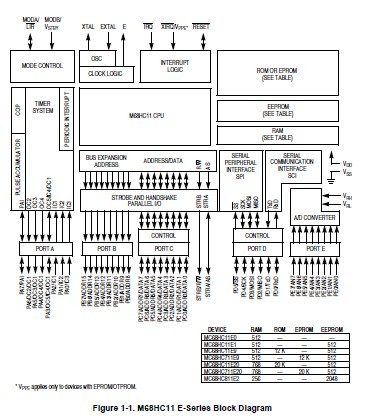

The MC68HC711E9CFN2 is an 8 bit microcontroller unit (MCU). This MCU combine the M68HC11 central processor unit (CPU) with high-performance, on-chip peripherals. The MC68HC711E9CFN2 is comprised of many devices with various configurations of random-access memory (RAM), read-only memory (ROM), erasable programmable read-only memory (EPROM) and so on.

Parametrics

MC68HC711E9CFN2 absolute maximum ratings: (1)Supply voltage, VDD: –0.3 to +7.0V; (2)Input voltage, VIn: –0.3 to +7.0V; (3)Current drain per pin, excluding VDD, VSS, AVDD, VRH, VRL, and XIRQ/VPPE, ID: 25mA; (4)Storage temperature, TSTG: –55 to +150℃.

Features

MC68HC711E9CFN2 features: (1)M68HC11 CPU; (2)Power-saving stop and wait modes; (3)Low-voltage devices available (3.0–5.5 Vdc); (4)0, 256, 512, or 768 bytes of on-chip RAM, data retained during standby; (5)0, 12, or 20 Kbytes of on-chip ROM or EPROM; (6)0, 512, or 2048 bytes of on-chip EEPROM with block protect for security; (7)2048 bytes of EEPROM with selectable base address in the MC68HC811E2; (8)Asynchronous non-return-to-zero (NRZ) serial communications interface (SCI); (9)Additional baud rates available on MC68HC(7)11E20; (10)Synchronous serial peripheral interface (SPI); (11)8-channel, 8-bit analog-to-digital (A/D) converter.
