Product Summary

The DDB6U205N16L is a rectifier diode module.

Parametrics

DDB6U205N16L absolute maximum ratings: (1)repetitive peak reverse voltage Stospitzensperrspannung Tvj = + 25℃ Tvj max, VRSM: 1600 V; (2)non-repetitive peak reverse voltage: 1700 V; (4)RMS forward current (per chip): 120 A; (5)output current: 205 A; (6)surge forward current Tvj = 25℃, tp = 10ms I2t: 1600 A; (7)It2-value Tvj = Tvj max, tp = 10ms: 9450 A2s.

Features

DDB6U205N16L features: (1)mounting torque tolerance ±15% M1 6 Nm; (2)terminal connection torque tolerance +5% / -10% M2: 4 Nm; (3)weight G typ. 220 g; (4)creepage distance 12,5 mm; (5)vibration resistance f = 50Hz: 50 m/s2.

Diagrams

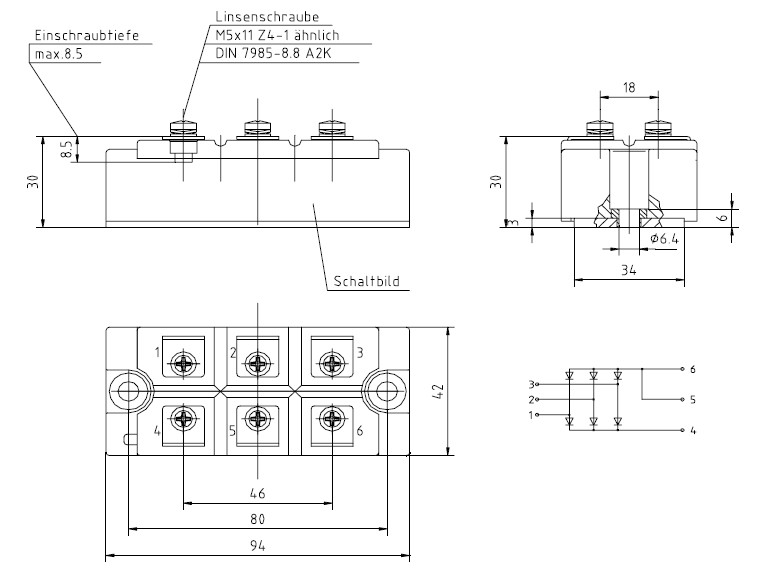

DDB6U205N16L diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DDB6U205N16L
DDB6U205N16L

Infineon Technologies

Discrete Semiconductor Modules 1600V 205A UN-CNTL

Data Sheet
