Product Summary

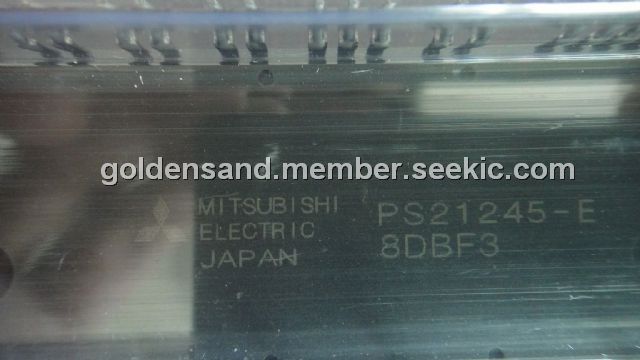

The PS21245-E is the 4th generation (planar) IGBT inverter bridge for 3 phase DC-to-AC power conversion. Application of the PS21245-E is AC100V~200V three-phase inverter drive for small power motor control.
Parametrics
PS21245-E absolute maximum ratings: (1)Supply voltage: 450V; (2)Supply voltage (surge): 500V; (3)Collector-emitter voltage: 600V; (4)Each IGBT collector current: 20A; (5)Each IGBT collector current (peak): 40A; (6)Collector dissipation: 56W; (7)Junction temperature: -20 to 150℃.
Features
PS21245-E features: (1)For upper-leg IGBTS :Drive circuit, High voltage isolated high speed level shifting, Control circuit under-voltage (UV) protection; (2)For lower-leg IGBTS : Drive circuit, Control circuit under-voltage protection (UV), Short circuit protection (SC); (3)Fault signaling : Corresponding to a SC fault (Low-side IGBT) or a UV fault (Low-side supply); (4)Input interface : 5V line CMOS/TTL compatible, Schmitt Trigger receiver circuit.

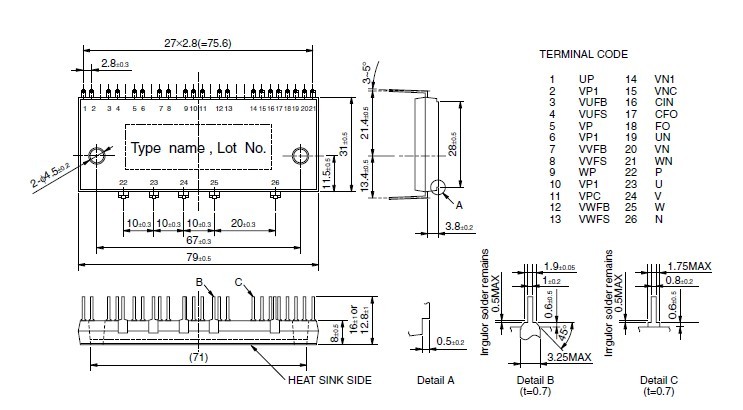

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS21245-E |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PS21245-EP |
|
MOD IPM 600V 20A DIP |
Data Sheet |
Negotiable |
|
||||
