Product Summary

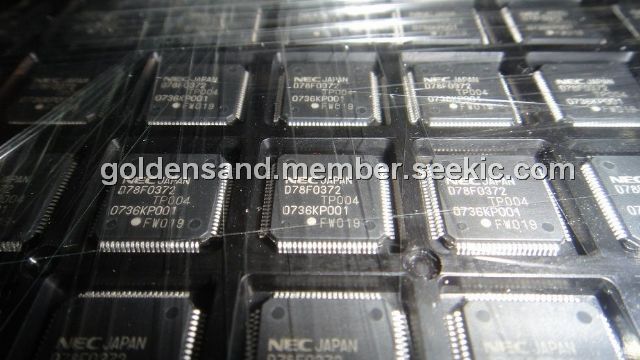

The UPD78F0372GK-8EU-A is an 8-Bit Single-Chip Microcontroller With LCD Controller/Driver.
Parametrics
UPD78F0372GK-8EU-A absolute maximum ratings: (1)Supply voltage, VDD: -0.3 to +6.5 V; LVDD: -0.3 to +6.5 V; VSS: -0.3 to +0.3 V; LVSS: -0.3 to +0.3 V; AVREF: -0.3 to VDD + 0.3V; AVSS: -0.3 to +0.3 V; (2)Input voltage, VI1: -0.3 to VDD + 0.3V; VI2: -0.3 to +6.5 V; (3)Output voltage, VO1: -0.3 to VDD + 0.3V; VO2: -0.3 to VLC0 + 0.3V; (4)Analog input voltage, VAN: -0.3 to AVREF + 0.3 and -0.3 to VDD + 0.3 V.
Features
UPD78F0372GK-8EU-A features: (1)Minimum instruction execution time can be changed from high speed (0.1 μs: @ 20 MHz operation with high-speed system clock) to ultra low-speed (122 μs: @ 32.768 kHz operation with subsystem clock); (2)General-purpose register: 8 bits × 32 registers (8 bits × 8 registers × 4 banks); (3)On-chip single-power-supply flash memory; (4)Self-programming (with boot swap function); (5)On-chip debug function; (6)On-chip power-on-clear (POC) circuit and low-voltage detector (LVI); (7)On-chip watchdog timer (operable with internal low-speed oscillation clock); (8)LCD controller/driver (internal voltage boosting, external resistance division, and internal resistance division are switchable).

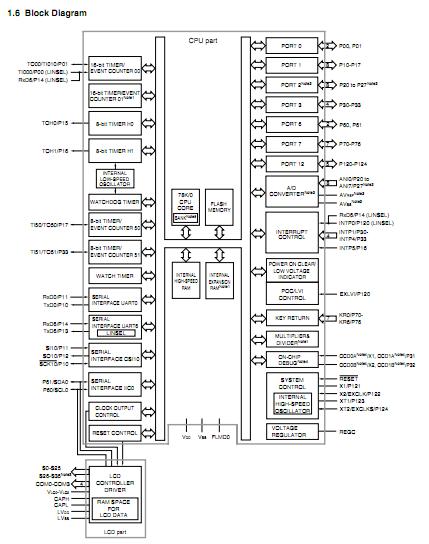

Diagrams
 |
