Product Summary

The PM200CLA120 is an Intelligent Power Module isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The PM200CLA120 is suitable for Inverters, UPS, Motion/Servo Control, Power Supplies.

Parametrics

PM200CLA120 absolute maximum ratings: (1)Power Device Junction Temperature, Tj: -20 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Mounting Torque, M5 Mounting Screws: 31 in-lb; (4)Mounting Torque, M6 Main Terminal Screws: 40 in-lb; (5)Module Weight (Typical): 1250 Grams; (6)Supply Voltage, Surge (Applied between P - N) VCC(surge): 1000 Volts; (7)Self-protection Supply Voltage Limit (Short Circuit protection Capability), VCC(prot.): 800 Volts; (8)Isolation Voltage, AC 1 minute, 60Hz Sinusoidal, VISO: 2500 Volts.

Features

PM200CLA120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit; Over Temperature Using On-chip Temperature Sensing; Under Voltage; (4)Low Loss Using 5th Generation IGBT Chip; (5)Low EMI/RFI.

Diagrams

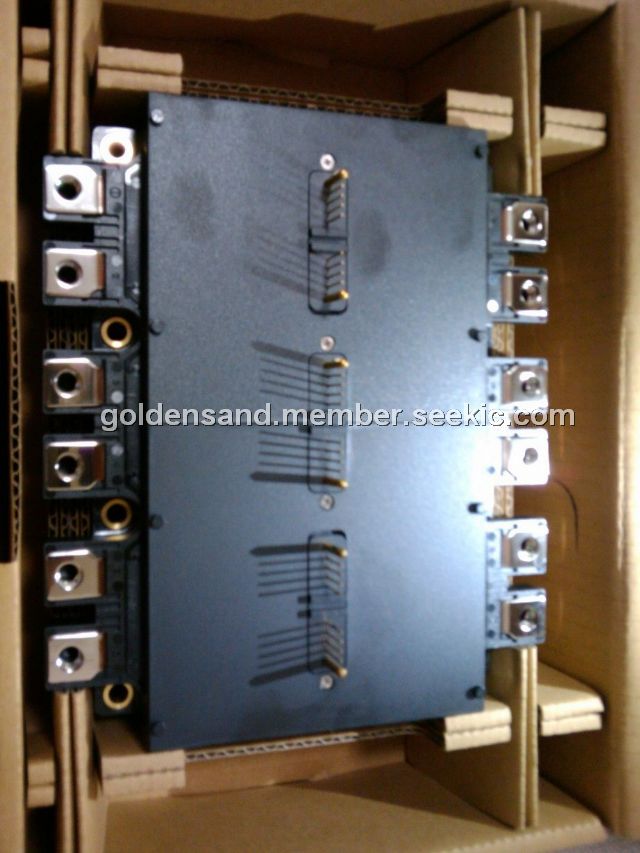

PM200CLA120 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PM200CLA120
PM200CLA120


MOD IPM L-SER 6PAC 1200V 200A

Data Sheet

0-1: $444.26
