Product Summary

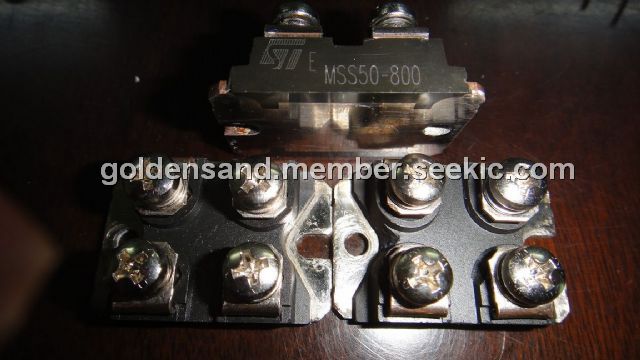

The MSS50-800 is a back to back SCR module. Packaged in ISOTOP modules, the MSS50-800 is based on two back-to-back SCR configurations, providing high noise immunity. The device is suitable for high power applications such as solid state relays, heating control systems, welding equipment, motor control circuits. The compactness of the ISOTOP package allows high power density and optimized power bus connections. Thanks to their internal ceramic pad, the MSS50-800 provides high voltage insulation (2500V RMS), complying with UL standards (File ref: E81734).

Parametrics

MSS50-800 absolute maximum ratings: (1)IT(RMS), RMS on-state current: 70A at Tc=85℃; (2)ITSM, Non repetitive surge peak on-state current: 630A at tp=16.7ms, Tj=25℃; 600A at tp=20ms, Tj=25℃; (3)I2t, I2t Value for fusing: 1800 A2S; (4)dI/dt, Critical rate of rise of on-state current: 50 A/μs; (5)IGM, Peak gate current: 4 A; (6)PG(AV), Average gate power dissipation: 1 W; (7)Tstg, Storage junction temperature range: -40 to 150℃; (8)Tj, Operating junction temperature range: - 40 to + 125℃; (9)VRGM, Maximum peak reverse gate voltage: 5 V.

Features

MSS50-800 features: (1)IT(RMS): 55 and 70 A; (2)VDRM/VRRM: 800 and 1200 V; (3)IGT: 50 mA.

Diagrams

MSS50-800 pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MSS50-800
MSS50-800

STMicroelectronics

SCR Modules 70 Amp 800 Volt

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MSS50-1200
MSS50-1200


MODULE SCR BACK TO BACK ISOTOP

Data Sheet

0-1: $12.29
1-10: $10.53
10-100: $9.34
100-250: $8.95
250-500: $8.78
500-1000: $8.67
1000-2500: $8.53
2500-5000: $8.42
MSS50-800
MSS50-800

STMicroelectronics

SCR Modules 70 Amp 800 Volt

Data Sheet

Negotiable
MSS5M0
MSS5M0

Mallory Sonalert

Speakers & Transducers

Data Sheet

0-1: $10.66

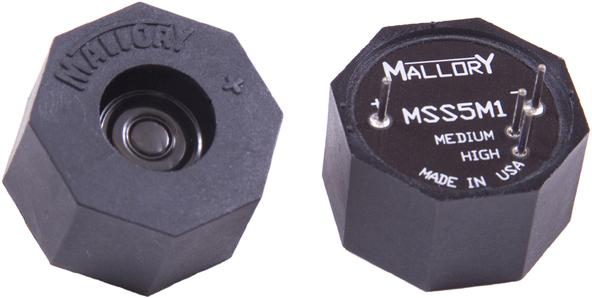

MSS5M1
MSS5M1

Mallory Sonalert

Audio Indicators & Alerts IEC60601-1-8, 5VDC PC PINS, 23X13MM

Data Sheet

0-1: $9.47
1-10: $8.99
10-25: $8.53
25-50: $8.05
MSS50
MSS50

Other


Data Sheet

Negotiable
