Product Summary
The M27C4002-45XF1 is a 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large programs and is organised as 262,144 words of 16 bits.
Parametrics
M27C4002-45XF1 absolute maximum ratings: (1)TA, Ambient Operating Temperature: –40 to 125℃; (2)TBIAS, Temperature Under Bias: –50 to 125℃; (3)TSTG, Storage Temperature: –65 to 150℃; (4)VIO, Input or Output Voltage (except A9): –2 to 7 V; (5)VCC, Supply Voltage: –2 to 7 V; (6)VA9, A9 Voltage: –2 to 13.5 V; (7)VPP, Program Supply Voltage: –2 to 14 V.
Features
M27C4002-45XF1 features: (1)5V ± 10% supply voltage in read operation; (2)access time: 45ns; (3)low power consumption: Active Current 70mA at 10MHz; Standby current 100μA; (4)programming voltage: 12.75V ± 0.25V; (5)programming time: 100μs/word; (6)electronic signature: manufacturer code: 20h; device code: 44h.

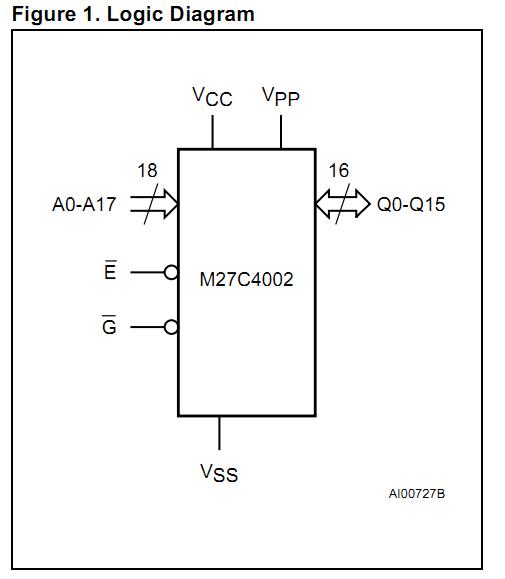

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C4002-45XF1 |
STMicroelectronics |
EPROM 4M (256Kx16) 45ns |
Data Sheet |
Negotiable |
|
||||
