Product Summary

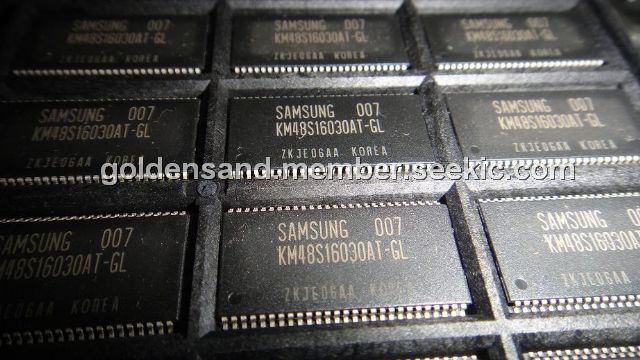

The KM48S16030AT-GL is a 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 4,194,304 words by 8 bits, fabricated with high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable burst length and programmable latencies allow the KM48S16030AT-GL to be useful for a variety of high bandwidth, high performance memory system applications.
Parametrics
KM48S16030AT-GL absolute maximum ratings: (1)Voltage on any pin relative to Vss VIN, VOUT: -1.0 to 4.6 V; (2)Voltage on VDD supply relative to Vss: -1.0 to 4.6 V; (3)Storage temperature TSTG: -55 to +150 ℃; (4)Power dissipation PD: 1 W; (5)Short circuit current IOS: 50 mA.
Features
KM48S16030AT-GL features: (1)JEDEC standard 3.3V power supply; (2)LVTTL compatible with multiplexed address; (3)Four banks operation; (4)All inputs are sampled at the positive going edge of the system clock; (5)Burst read single-bit write operation; (6)DQM for masking; (7)Auto & self refresh; (8)64ms refresh period (4K cycle).

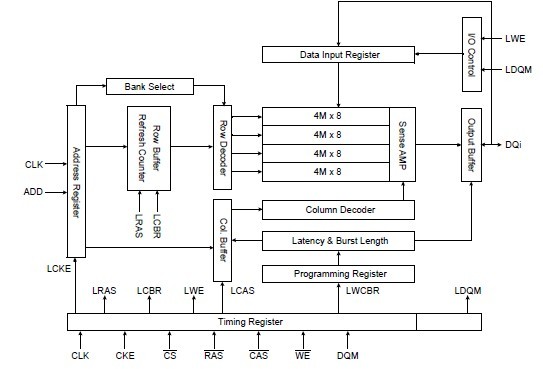

Diagrams
 |
