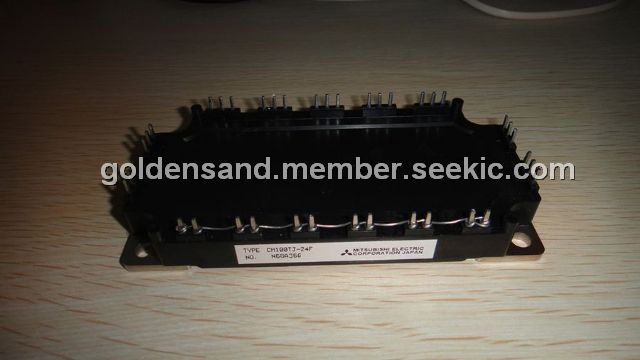

Product Summary
The CM100TJ-24F is a Powerex IGBTMOD Module. It is designed for use in switching applications.
Parametrics
Absolute maximum ratings: (1)Junction Temperature:-40℃ to 150℃; (2)Storage Temperature:-40℃ to 125℃; (3)Collector-Emitter Voltage (G-E SHORT):1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT):±20 Volts; (5)Collector Current (Tc=25℃):100 Amperes; (6)Peak Collector Current (Tj≤150℃):200Amperes; (7)Emitter Current (Tc=25℃):100Amperes; (8)Peak Emitter Current:200Amperes; (9)Maximum Collector Dissipation (Tj<150℃) (Tc=25℃):390Watts; (10)Mounting Torque, M5 Mounting:31in-lb; (11)Weight:300Grams; (12)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.):2500 Volts.
Features
Features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)Isolated Baseplate for Easy Heat Sinking.

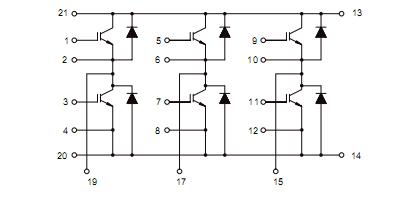

Diagrams
