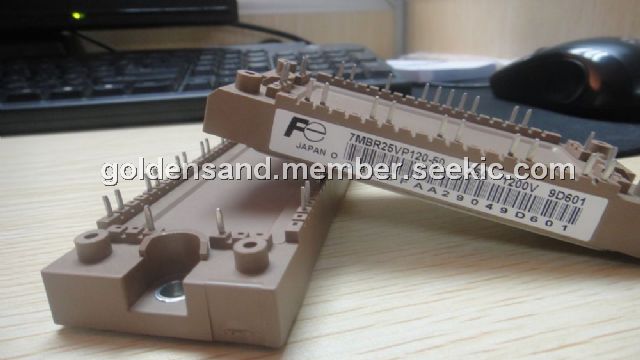

Product Summary

The 7MBR25VP120 is a IGBT Module.

Parametrics

7MBR25VP120 absolute maximum ratings: (1)collector-emitter voltage:1200V; (2)gate-emitter voltage:±20V; (3)collector power dissipation:170W; (4)repetitive peak reverse voltage(diode):1200V; (5)repetitive peak reverse voltage:1600V; (6)average output current:25A; (7)surge current:155A; (8)operating junction temperature:150℃; (9)case temperature:125℃; (10)storage temperature:-40℃ to +125℃.

Features

7MBR25VP120 features: (1)Low VCE(sat); (2)compact package; (3)P.C.Board mount module; (4)converter diode bridge dynamic brake circuit; (5)RoHS compliant product.

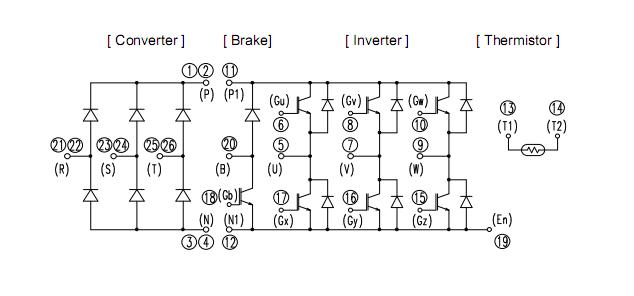

Diagrams

7MBR 10SA-120
7MBR 10SA-120
