Product Summary

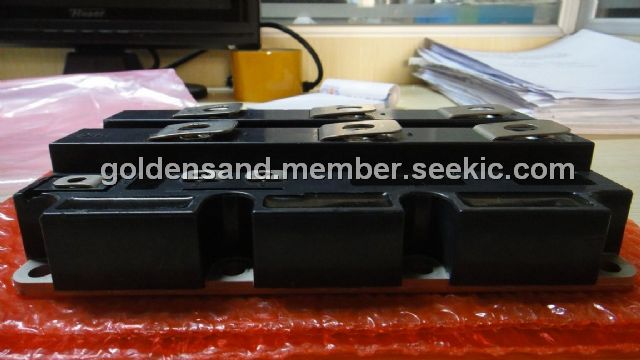

The cm900hb-90h is a 2nd-Version HVIGBT (High Voltage Insulated Gate Bipolar Transistor) Module. It is suitable for Inverters, Converters, DC choppers, Induction heating, DC to DC converters.

Parametrics

cm900hb-90h absolute maximum ratings: (1)Collector-emitter voltage, VCES: 4500V; (2)Gate-emitter voltage, VGES: ±20V; (3)Maximum collector dissipation, PC: 11100W; (4)Junction temperature, Tj: -40 to 125℃; (5)Storage temperature, Tstg: -40 to 125℃; (6)Isolation voltage, Viso: 6000V; (7)collector current, IC: 900A; ICM: 1800A; (8)emitter current, IE: 900A; IEM: 1800A.

Features

cm900hb-90h features: (1)IC: 900A; (2)VCES: 4500V; (3)Insulated Type; (4)1-element in a pack.

Diagrams

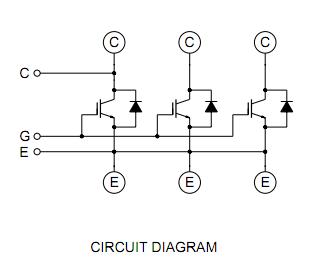

cm900hb-90h circuit diagram
