Product Summary

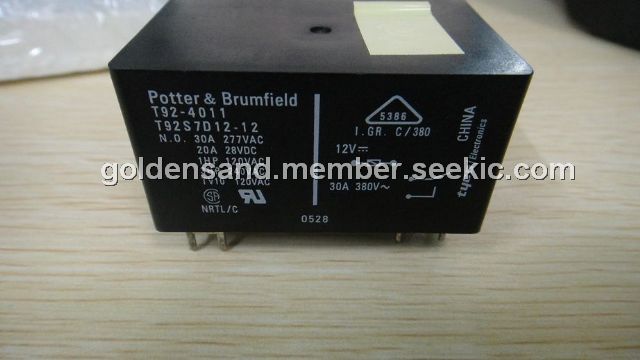

The T92S7D12-12 is a power relay. It is suitable for Power supplies, heating & ventilation, control equipment.

Parametrics

T92S7D12-12 absolute maximum ratings: (1)Voltage: 12 through 110VDC and 12 through 277VAC; (2)Resistance: See Coil Data table; (3)Nom. Power: AC Coil: 4.0VA; DC Coil: 1.7W; (4)Coil Temp. Rise: 35℃/W; (5)Max. Coil Temp: 155℃.

Features

T92S7D12-12 features: (1)30A DPST-NO and DPDT switching capabilities; (2)Designed to control compressor loads to 3.5 tons, 25.3 FLA, 110 LRA; (3)Extended life >300,000 operations at 30A, 240VAC (DC coil); (4)>100,000 operations at 30A, 240VAC (AC coil); (5)Meets requirements of UL873 and UL508 spacings; (6).315(8mm) through air, .375(9.5mm) over surface; (7)Meets requirements of VDE 8mm spacing, 4kV dielectric coil-to-contacts; (8)Meets requirements of UL Class F construction; (9)UL approved for 600VAC switching (1.5HP); (10)Conforms to VDE 0435, 0631, and 0700; (11)New screw terminal version.

Diagrams

T92S7D12-12 Wiring Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
T92S7D12-12
T92S7D12-12

TE Connectivity / P&B

General Purpose / Industrial Relays DPST-NO PC MT 12VDC

Data Sheet

0-1: $7.17
1-10: $6.90
10-25: $6.82
25-50: $6.29
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
T92S11A12-120
T92S11A12-120

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT 30A 110/120VAC PWR PCB/PNL MNT RLY

Data Sheet

0-77: $7.39
77-100: $6.14
100-200: $5.90
200-500: $5.76
T92S11A12-24
T92S11A12-24

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT 30A 24VAC PCB RELAY

Data Sheet

0-336: $5.90
336-500: $5.76
T92S11A22-12
T92S11A22-12

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT 20A 12VAC PWR PCB/PNL MNT RLY

Data Sheet

0-336: $5.90
336-500: $5.76
T92S11A22-120
T92S11A22-120

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT PNL MT 120VAC

Data Sheet

0-1: $8.73
1-10: $8.14
10-25: $7.63
25-50: $6.91
T92S11A22-208
T92S11A22-208

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT 30A 208VAC SEAL PWR PCB/PNL MNT RLY

Data Sheet

0-1: $11.06
1-25: $9.68
25-50: $8.75
50-100: $7.51
T92S11A22-24
T92S11A22-24

TE Connectivity / P&B

General Purpose / Industrial Relays DPDT PNL MT 24VAC

Data Sheet

0-1: $8.73
1-10: $8.14
10-25: $7.63
25-50: $6.79
