Product Summary

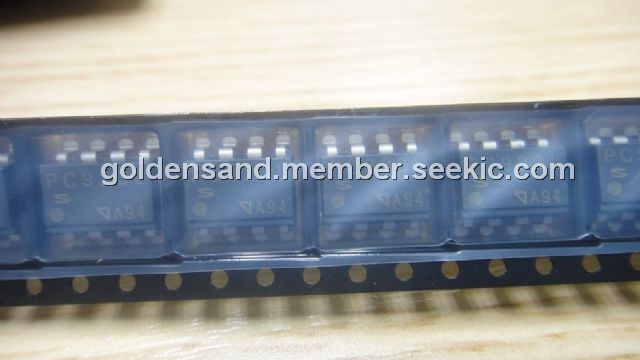

The PC923L is a High Speed, Gate Drive DIP 8 pin OPIC Photocoupler. The PC923L contains a LED optically coupled to an OPIC chip. The PC923L is packaged in a 8 pin DIP, available in SMT gullwing lead form option. Input-output isolation voltage(rms) is 5.0 kV, High speed response (tPHL, tPLH : MAX. 0.5 μs).

Parametrics

PC923L absolute maximum ratings: (1)Forward current: 20 mA; (2)Reverse voltage: 5 V; (3)Supply voltage: 35 V; (4)O1 output current: 0.1 A; (5)O1 Peak output current: 0.6 A; (6)O2 output current: 0.1 A; (7)O2 Peak output current: 0.6 A; (8)O1 output voltage: 35 V; (9)Operating temperature: -40 to +85 ℃; (10)Storage temperature: -55 to +125 ℃.

Features

PC923L features: (1)8 pin DIP package; (2)Double transfer mold package (Ideal for Flow Soldering); (3)Built-in direct drive circuit for MOSFET / IGBT drive (IO1P, IO2P : 0.6 A); (4)High speed response (tPHL, tPLH : MAX. 0.5 μs); (5)Wide operating supply voltage range (VCC=15 to 30 V); (6)High noise immunity due to high instantaneous common mode rejection voltage (CMH : MIN. .15kV/μs, CML : MIN. 15kV/μs); (7)High isolation voltage between input and output (Viso(rms) : 5.0 kV).

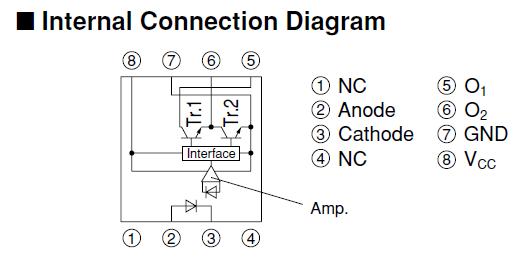

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PC923L0NIP0F
PC923L0NIP0F
Sharp Microelectronics
High Speed Optocouplers Gull Wing SMT Hi Speed 15Mb/s
Data Sheet
Negotiable
PC923L0NSZ0F
PC923L0NSZ0F
Sharp Microelectronics
High Speed Optocouplers Photocoupler Hi Speed MOSFET/IGBT
Data Sheet
Negotiable
PC923L0YSZ0F
PC923L0YSZ0F
Sharp Microelectronics
High Speed Optocouplers VDE Approved PC923L0NSZ0F
Data Sheet
Negotiable
